ServiceNow Reference Qualifier with real time scenario

Let's understand about ServiceNow Reference Qualifier which is quite important topic and an be used to filter the data on reference field.

What is Reference Qualifier ?

Use reference qualifiers to create filters that restrict the data that is returned for a reference field.

What are types of Reference Qualifier ?

1.> Simple

2.> Dynamic

3.> Advanced

1.> What is Simple Reference qualifier ?

Simple reference qualifiers use AND/OR statements (conditions) to create simple filters.

 Ex - Use simple reference qualifiers when filtering on conditions such as whether a company is active, a user has a specific role, and/or a caller is in a specific time zone.

2.> What is Dynamic Reference Qualifier ?

Dynamic reference qualifiers enable you to use a dynamic filter option to run a query against a reference field to filter the returned data set.

Ex- you can add dynamic filter created. In dynamic filter, you can call script include as per your requirement.

Let's implement a real time scenario of Dynamic Reference Qualifier :

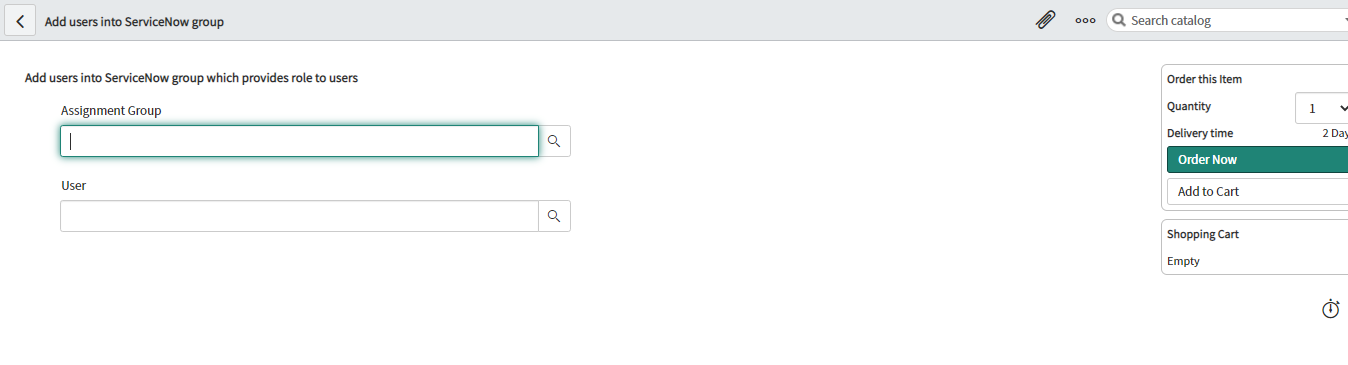

Let's show only members who are part of the assignment group in user field for Catalog Item(having two fields assignment group & user) shown below :

Step 1- Navigate to sys_filter_option_dynamic table -

Create new Dynamic filter option with named "GroupMembers"


Step 2 - Call Script Include "GroupMembers" & function "getGrpMembers" in Script field defined below :

Script Include : GroupMembers

var GroupMembers = Class.create(); GroupMembers.prototype = { initialize: function() { },

getGrpMembers: function() {

var GrpU = current.variables.assignment_group_name.sys_id;

var grpMember = new GlideRecord('sys_user_grmember');

grpMember.addQuery('group',GrpU );

grpMember.query();

var userMember= '';

while (grpMember.next()) {

userMember+= ',' +grpMember.user.sys_id;  }

return 'sys_idIN' +userMember;

}, type: 'GroupMembers' };

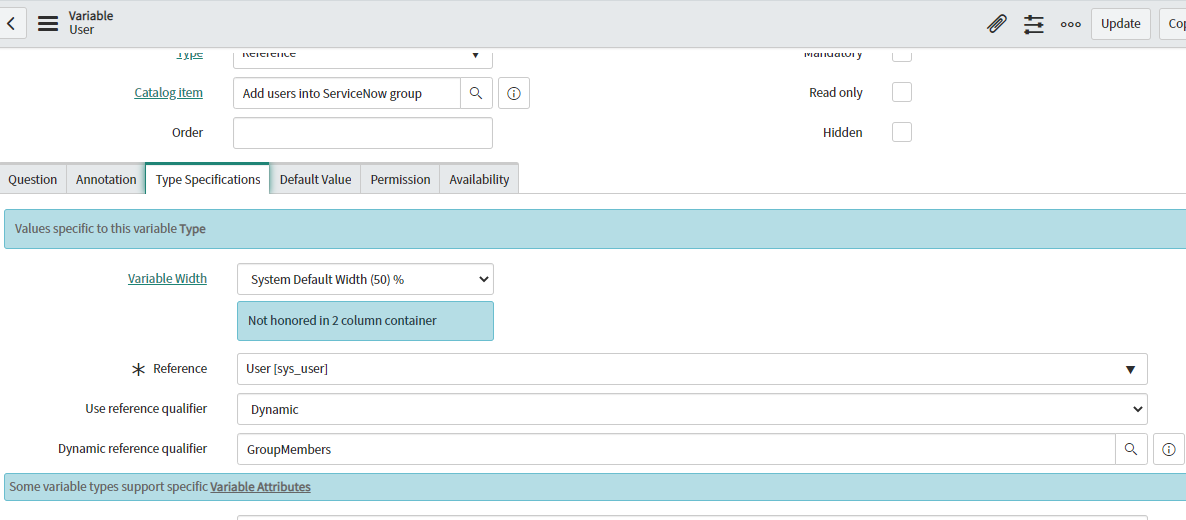

Now, Select Dynamic Reference Qualifier option in Type specification of user field dictionary & add the dynamic filter "GroupMembers" which we have created, image shown below for your reference :

Refer the Reference Qualifier videos on ServiceNow Adda YouTube channel for better understanding link below:

Reference Qualifier Video

Advanced Reference Qualifier

Hope you like my blog, let me know in comment section below ! Stay tuned for new blog.
